Web Endpoints
A web endpoint takes an HTTP service running on a device and gives it a URL. Somebody opens the URL in a browser and reaches the service, with nothing installed and no SSH involved.
What it is for
A device is running a web interface — a dashboard, an admin panel, a camera’s UI — on a network you cannot reach. A port forward solves that for you, on your machine, for as long as the forward is open.
A web endpoint solves it for anyone you give the URL to, with no client at all. That is the difference, and it is the reason to choose one over the other.
Creating one

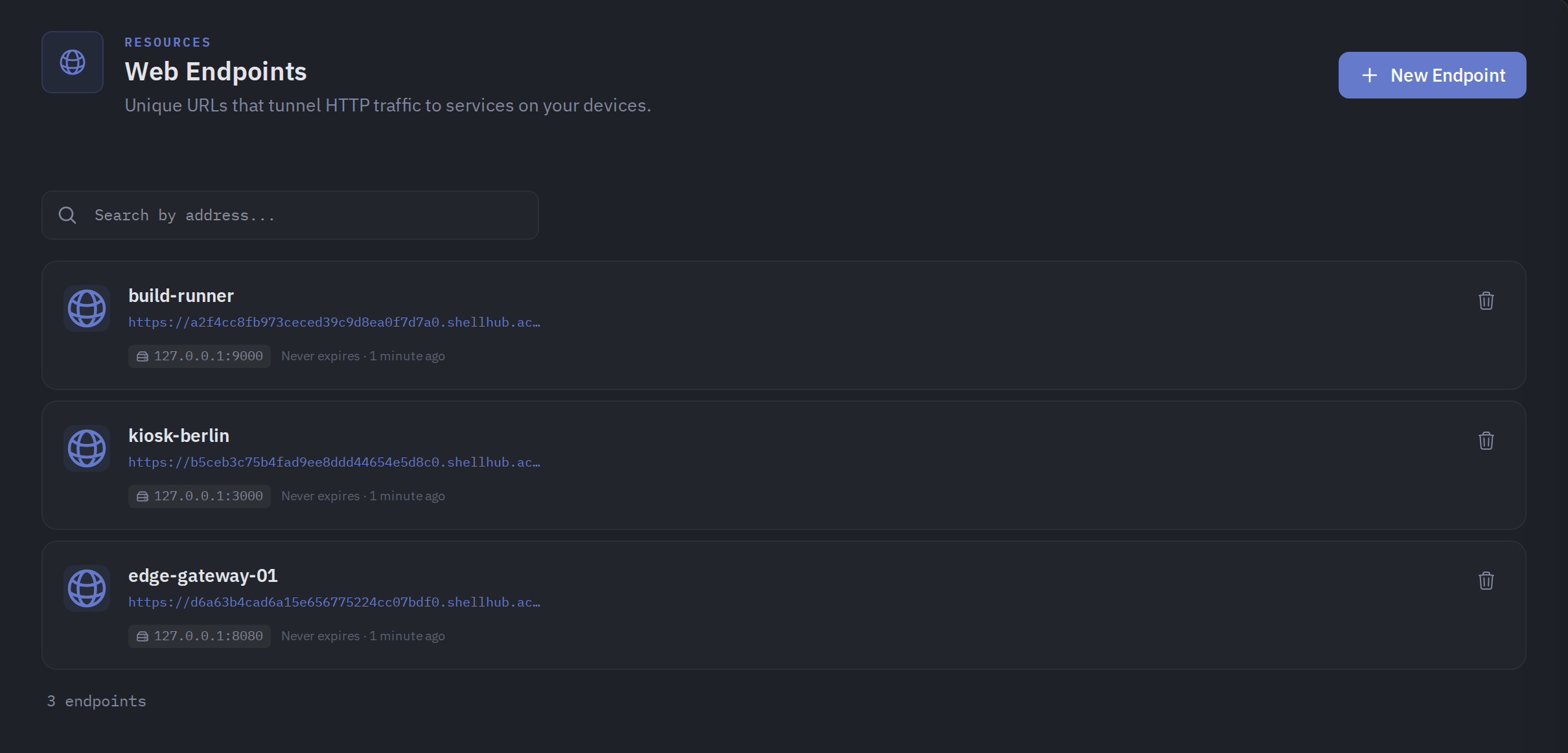

From the console’s Web Endpoints page, pick the device and the port the service is listening on. You get back a URL.
The endpoint carries an expiry, shown in the list as time remaining.
How access works
This is the part to be clear-eyed about. A web endpoint is reached by knowing its URL. The address contains a random component that is both its name and its secret. There is no login in front of it, and access policies do not apply to it.
The consequences:
- Anyone with the URL reaches the service, from anywhere.
- The URL in a chat message, a ticket, or a browser history is a working credential.
- Revoking access means deleting the endpoint, not changing a policy.
That is a reasonable trade for showing somebody a dashboard for an afternoon. It is the wrong mechanism for standing access to something sensitive — use SSH and policies for that.
Set expiries deliberately, and delete endpoints when the reason for them has passed.
What it does not expose
Publishing an endpoint publishes one service on one port. It does not give anyone a shell, a file transfer, or access to anything else on the device. The device itself stays unreachable.
Self-hosted configuration
On Enterprise, web endpoints need a DNS provider so certificates can be issued for the generated hostnames:
| Variable | Default | Meaning |
|---|---|---|
SHELLHUB_WEB_ENDPOINTS |
false |
Switches the feature on |
SHELLHUB_WEB_ENDPOINTS_DOMAIN |
falls back to SHELLHUB_DOMAIN |
The domain endpoints are published under |
SHELLHUB_WEB_ENDPOINTS_DNS_PROVIDER |
digitalocean |
DigitalOcean and Cloudflare are supported; acme-dns is also handled |
SHELLHUB_WEB_ENDPOINTS_DNS_PROVIDER_TOKEN |
— | Required when auto-SSL is on |
Endpoints get their own hostnames under the endpoints domain, so that domain needs a wildcard DNS record pointing at the server.
Where to go next
- Port Forwarding — The alternative, for yourself rather than others.
- Environment Variables — The self-hosted settings above.
